House Plan HPR-8693

ENERGY STAR Total Living Area: 2266 Sq. Ft.
Main Level: 973 Sq. Ft.
Second Floor: 1293 Sq. Ft.
Lower Floor: 829 Sq. Ft.
Bedrooms: 4
Full Baths: 2, Half Baths: 1
Width: 52 Ft.    Depth: 41 Ft.
Garage Size: 2
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $750.00
 PDF File  $1,200.00
 Five Sets of Plans  $1,300.00
ADDITIONAL PLAN OPTIONS

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

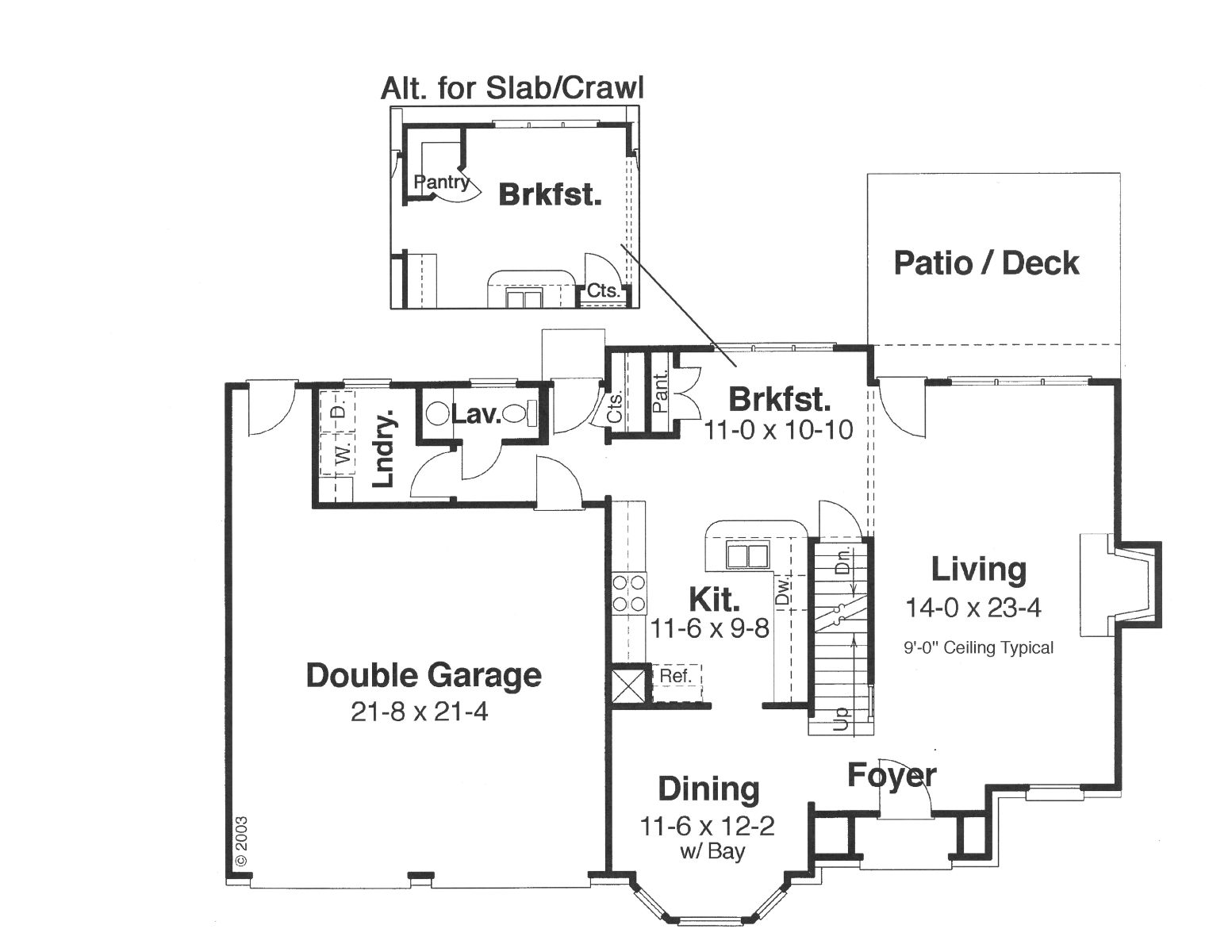

First Floor:
First Floor image of OAKMONT House Plan
© copyright by designer

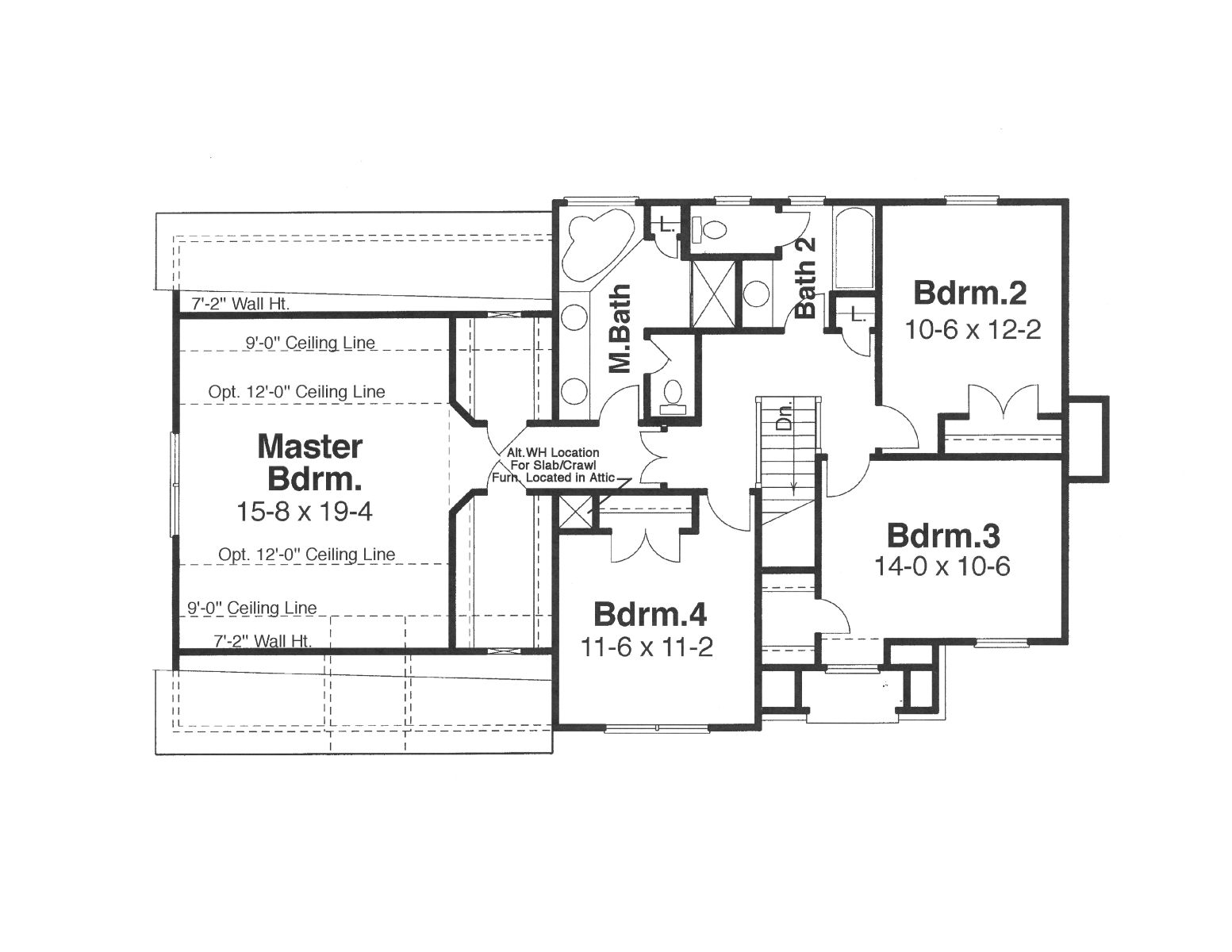

Second Floor:
Second Floor image of OAKMONT House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:52' 0"
Depth:41' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Southern
European
PDFs Fast!
Old House Classics
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:973 Sq. Ft.
Upper Level: 1293 Sq. Ft.
Lower Level:829 Sq. Ft.
Total: 2266 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:516 Sq. Ft.
Patio:168 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:32' 4"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Gable:12/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Front-entry
Great Room
His and Hers Master Closets
Laundry 1st Fl
  KEY FEATURES
Master Bdrm Upstairs
Nook / Breakfast Area
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
