House Plan HPR-8621

Total Living Area: 2863 Sq. Ft.
Main Level: 1556 Sq. Ft.
Second Floor: 1307 Sq. Ft.
Bedrooms: 4
Full Baths: 3, Half Baths: 1
Width: 41 Ft. 6 In.    Depth: 69 Ft.
Garage Size: 2
Foundation: Basement Alternate, Slab
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $850.00
 PDF File  $1,325.00
 Five Sets of Plans  $1,450.00
 CAD File  $1,988.00
FOUNDATION OPTIONS
 Slab  $0.00
 Basement Alternate  $600.00
ADDITIONAL PLAN OPTIONS
 Conversion to 2 x 6 Walls  $600.00
 Right Read Reverse  $800.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

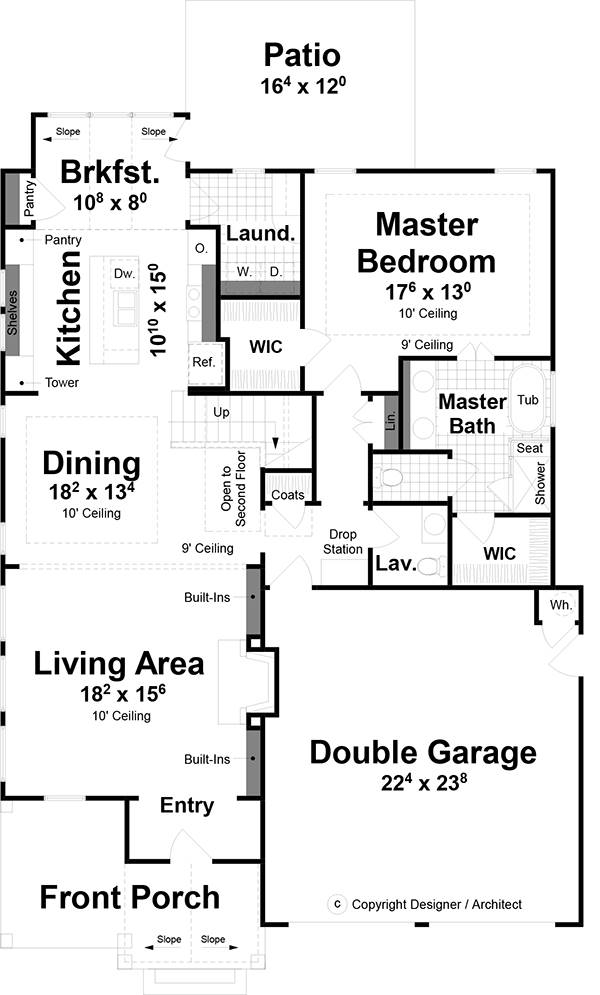

1st Floor:
1st Floor image of Wimbly House Plan
© copyright by designer

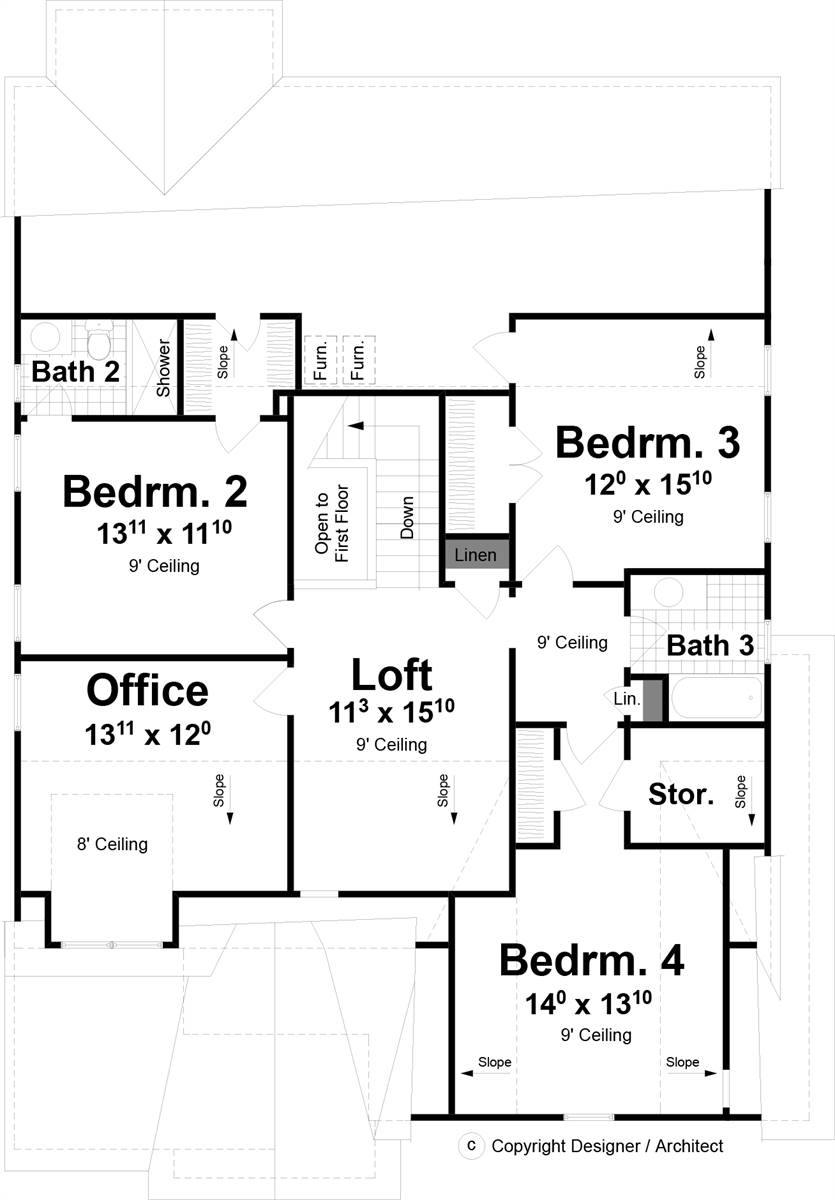

2nd Floor:
2nd Floor image of Wimbly House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:41' 6"
Depth:69' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Cottage
Builders
Old House Classics
PDFs Fast!
Budget
Bungalow
Country
Craftsman
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1556 Sq. Ft.
Upper Level: 1307 Sq. Ft.
Total: 2863 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:550 Sq. Ft.
Porch:148 Sq. Ft.
Deck:195 Sq. Ft.
  GARAGE
Garage Type:
Garage Size:2
  FOUNDATION
Basement Alternate
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Second Floor Ceiling:8
Maximum House Height:24' 2"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:7
Gable:14
Dormer:4
Porch:2.5
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Front-entry
Great Room
  KEY FEATURES
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Nook / Breakfast Area
Open Floor Plan
Pantry
Separate Tub and Shower
Suited for corner lot
Suited for narrow lot
