House Plan HPR-8249

Total Living Area: 1764 Sq. Ft.
Main Level: 887 Sq. Ft.
Second Floor: 877 Sq. Ft.
Lower Floor: 863 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 61 Ft.    Depth: 46 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $725.00
 PDF File  $1,100.00
 Five Sets of Plans  $1,200.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $60.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

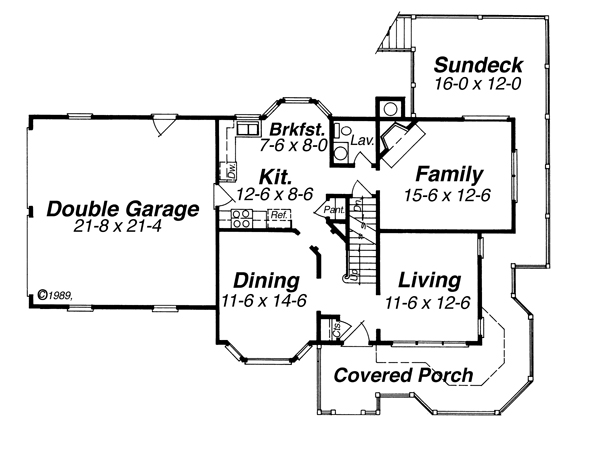

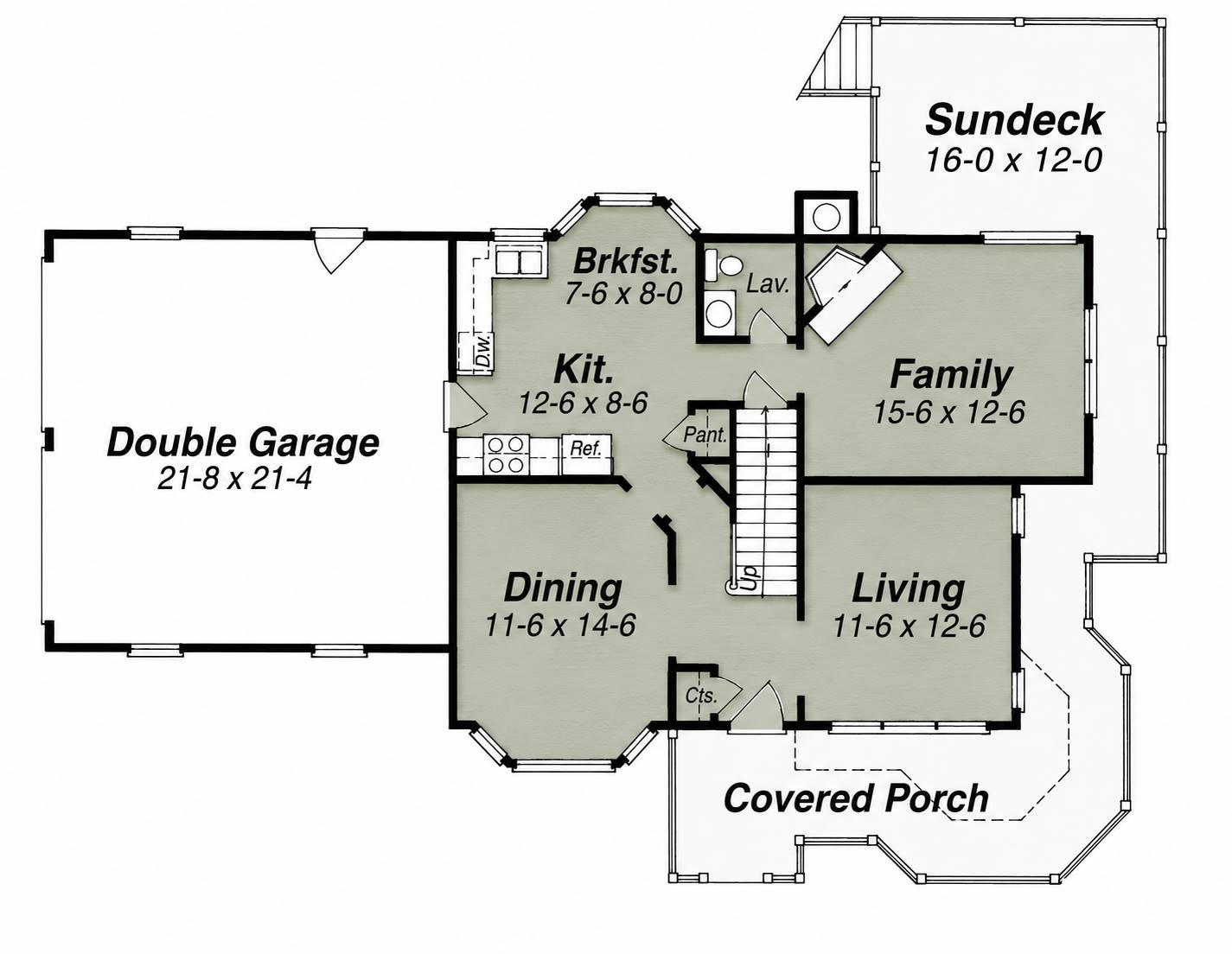

First Floor:
First Floor image of SOMERSET House Plan
© copyright by designer

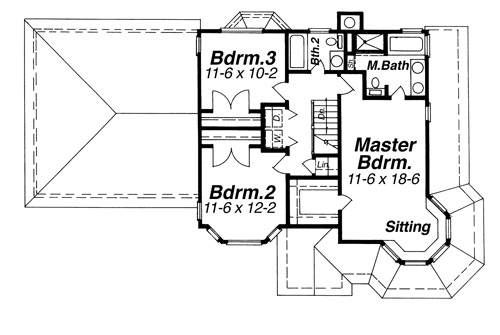

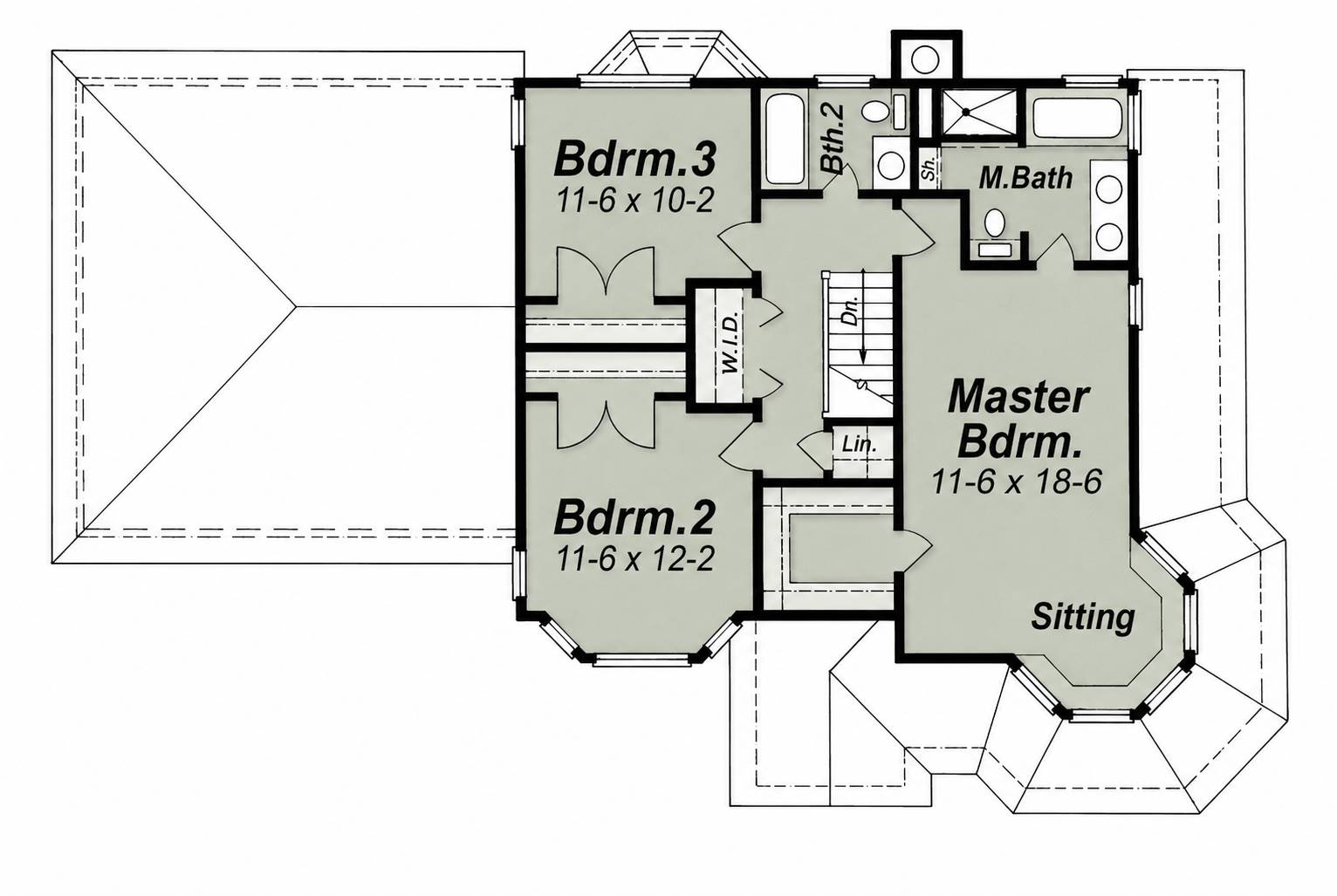

Second Floor:
Second Floor image of SOMERSET House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:61' 0"
Depth:46' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Victorian
Farmhouse
Country
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:887 Sq. Ft.
Upper Level: 877 Sq. Ft.
Lower Level:863 Sq. Ft.
Total: 1764 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:484 Sq. Ft.
Porch:352 Sq. Ft.
Deck:192 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:25' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:7/12
Secondary:20/12
Gable:7/12
Porch:5/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
  KEY FEATURES
Front Porch
Laundry 2nd Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Separate Tub and Shower
Side-entry
Sitting Area
Suited for sloping lot
Walk-in Closet
Walkout Basement
