House Plan HPR-5843

Total Living Area: 2911 Sq. Ft.
Main Level: 2911 Sq. Ft.
Bonus: 525 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 90 Ft.    Depth: 100 Ft.
Garage Size: 2
Foundation: WALK OUT BASEMENT
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF BID SET  $900.00
 PDF File  $1,400.00
 Five Sets of Plans  $1,550.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer

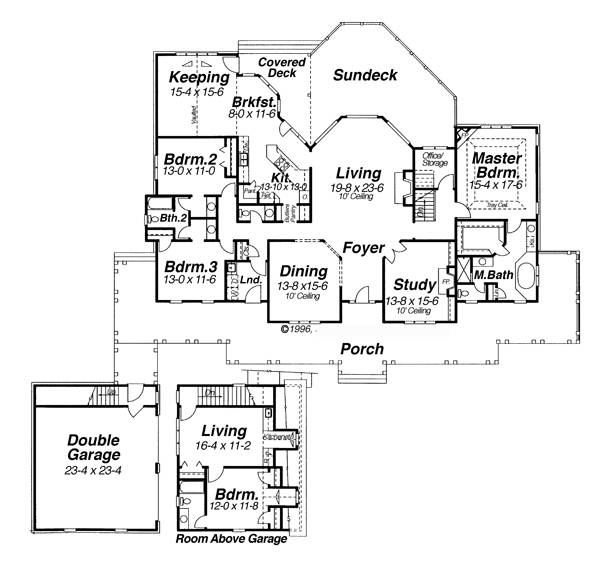

Floor Plan:
Floor Plan image of Carnegie House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:90' 0"
Depth:100' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Farmhouse
Southern
Country
Vacation
PDFs Fast!
Old House Classics
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:2911 Sq. Ft.
Total: 2911 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:672 Sq. Ft.
Porch:980 Sq. Ft.
Deck:193 Sq. Ft.
Patio:450 Sq. Ft.
Bonus Room:525 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Maximum House Height:24' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/12
Gable:12/12
Dormer:12/12
Porch:3/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Arches
Basement
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Deck
Detached
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Great Room
Home Office
Laundry 1st Fl
  KEY FEATURES
Library/Media Rm
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for sloping lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
With Living Space
