House Plan HPR-5824
Total Living Area:
3223 Sq. Ft.
Main Level:
1388 Sq. Ft.
Second Floor:
1835 Sq. Ft.
Bedrooms:
4
Full Baths:
3,
Half Baths:
1
Width:
37 Ft. 6 In.
Depth:
78 Ft. 5 In.
Garage Size:
2
Foundation:
WALK OUT BASEMENT
+
View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour
Plan Packages
HOUSE PLAN SETS
PDF BID SET
$850.00
PDF File
$1,325.00
Five Sets of Plans
$1,450.00
CAD File
$1,988.00
FOUNDATION OPTIONS
WALK OUT BASEMENT
$0.00
ADDITIONAL PLAN OPTIONS
For more details about our plan packages
click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >
Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.
Modify Plan
Need to make changes?
Request a free
online quote
.
Save This Plan
Create an online portfolio of
favorite house plans.
Newsletter Sign-up
Each week receive our
free e-newsletters.
© copyright by designer

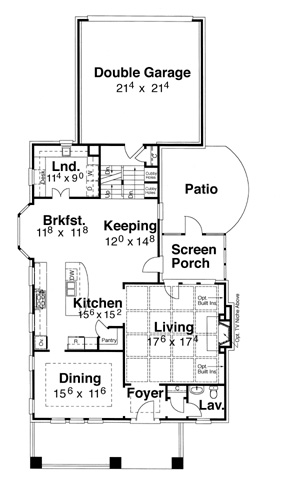

First Floor:
© copyright by designer

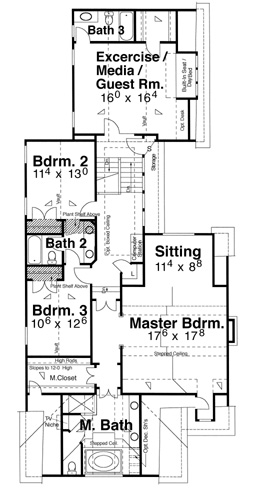

Second Floor:
Return to previous search results >
+ Add to Favorites >
Free Cost Estimator >
Purchase this Plan >
Plan Specifications
GENERAL HOUSE INFORMATION
Number of Stories:
2
Width:
37' 6"
Depth:
78' 5"
Dwelling Number:
Single
Bonus Access:
None
EXTERIOR STYLE
Craftsman
Bungalow
PDFs Fast!
Old House Classics
Luxury
NUMBERS OF ROOMS
Bedrooms:
4
Full Baths:
3
Half Baths:
1
FINISHED SQUARE FOOTAGE
Main Level:
1388 Sq. Ft.
Upper Level:
1835 Sq. Ft.
Total:
3223 Sq. Ft.
UNFINISHED SQUARE FOOTAGE
Garage:
484 Sq. Ft.
Porch:
208 Sq. Ft.
Patio:
144 Sq. Ft.
GARAGE
Garage Type:
Attached
Garage Size:
2
FOUNDATION
WALK OUT BASEMENT
HOUSE AND CEILING HEIGHTS
First Floor Ceiling:
9
Second Floor Ceiling:
8
Maximum House Height:
29' 6"
FRAMING INFORMATION
Roof Framing:
Stick
Exterior Wall Framing:
2x4
ROOF PITCH
Primary:
12/12
Secondary:
3/12
Gable:
12/12
Dormer:
3/12
Porch:
12/12
ROOF LOAD
Live:
20
Dead:
10
INSULATION (R)
Exterior Wall:
13
Interior Wall:
0
Ceiling:
30
Floor:
19
KEY FEATURES
Attached
Basement
Bonus Room
Covered Front Porch
Crawlspace
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Formal LR
Front Porch
Great Room
Guest Suite
Home Office
In-law Suite
KEY FEATURES
Kitchen Island
Laundry 1st Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rear-entry
Screened Porch/Sunroom
Separate Tub and Shower
Sitting Area
Split Bedrooms
Suited for narrow lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
