House Plan HPR-1047

Total Living Area: 3303 Sq. Ft.
Main Level: 2031 Sq. Ft.
Second Floor: 1272 Sq. Ft.
Third Floor: 627 Sq. Ft.
Bonus: 398 Sq. Ft.
Bedrooms: 5
Full Baths: 3, Half Baths: 1
Width: 68 Ft.    Depth: 63 Ft.
Garage Size: 3
Foundation: Basement Alternate, WALK OUT BASEMENT
+ View Plan Details
Reverse Plan
Favorites
Print Plan
3D Tour

Plan Packages

HOUSE PLAN SETS
 PDF File  $900.00

For more details about our plan packages click here
770.928.0456
Cost to Build
Modify Plan
Free online quote >

Photographs, if shown, may reflect homeowner modifications. © Copyright by designer.

Need to make changes?
Request a free online quote.		 Create an online portfolio of
favorite house plans.		 Each week receive our
free e-newsletters.
© copyright by designer
First Floor:
First Floor image of DRESDEN House Plan
© copyright by designer

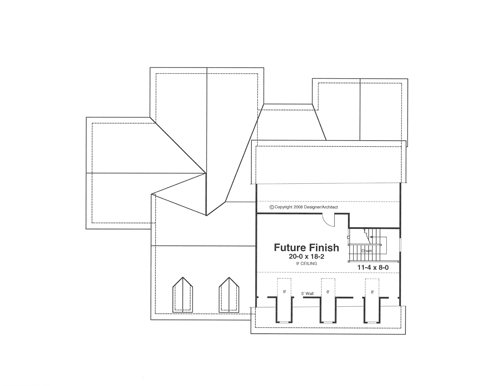

Attic:
Attic image of DRESDEN House Plan
© copyright by designer

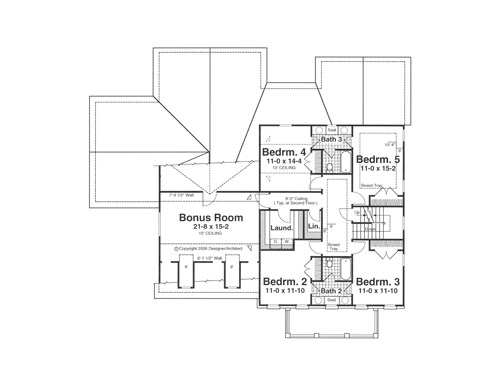

Second Floor:
Second Floor image of DRESDEN House Plan
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:68' 0"
Depth:63' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Traditional
Colonial
Concept Plan
Luxury
  NUMBERS OF ROOMS
Bedrooms:5
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:2031 Sq. Ft.
Upper Level: 1272 Sq. Ft.
Third Level: 627 Sq. Ft.
Total: 3303 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:838 Sq. Ft.
Storage:627 Sq. Ft.
Porch:242 Sq. Ft.
Bonus Room:398 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:3
  FOUNDATION
Basement Alternate
WALK OUT BASEMENT
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:36' 3"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
Secondary:9/12
Dormer:12/12
Porch:9/12
  ROOF LOAD
Live:20
Dead:10
Wind:90
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
Attached
Basement
Bonus Room
Butler's Pantry
Covered Front Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Home Office
Kitchen Island
Laundry 1st Fl
Laundry 2nd Fl
Library/Media Rm
  KEY FEATURES
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for sloping lot
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
